Bailey 24'' LED Decorative Linear
MODEL: BAYL2408
- LIGHT SOURCE: Integrated LED

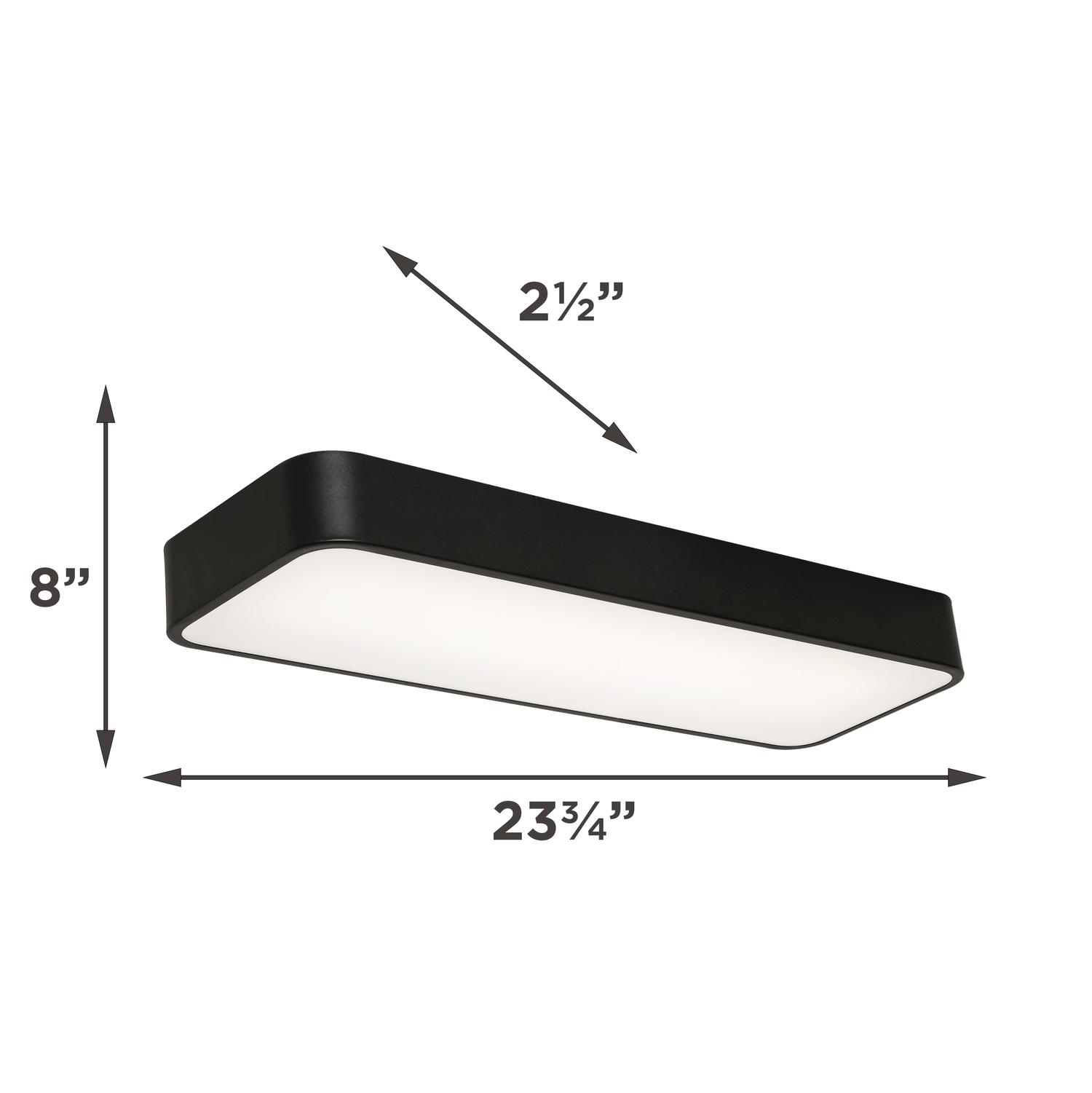

- LENGTH: 24''
- WIDTH: 8''
- HEIGHT: 2.5''
- EXTENDS: 2.5''
- VOLTAGE: 120-277V
- WATTAGE: 25W
- CRI: 90
- SOURCE LUMENS: 2200
- DELIVERED LUMENS: 1875

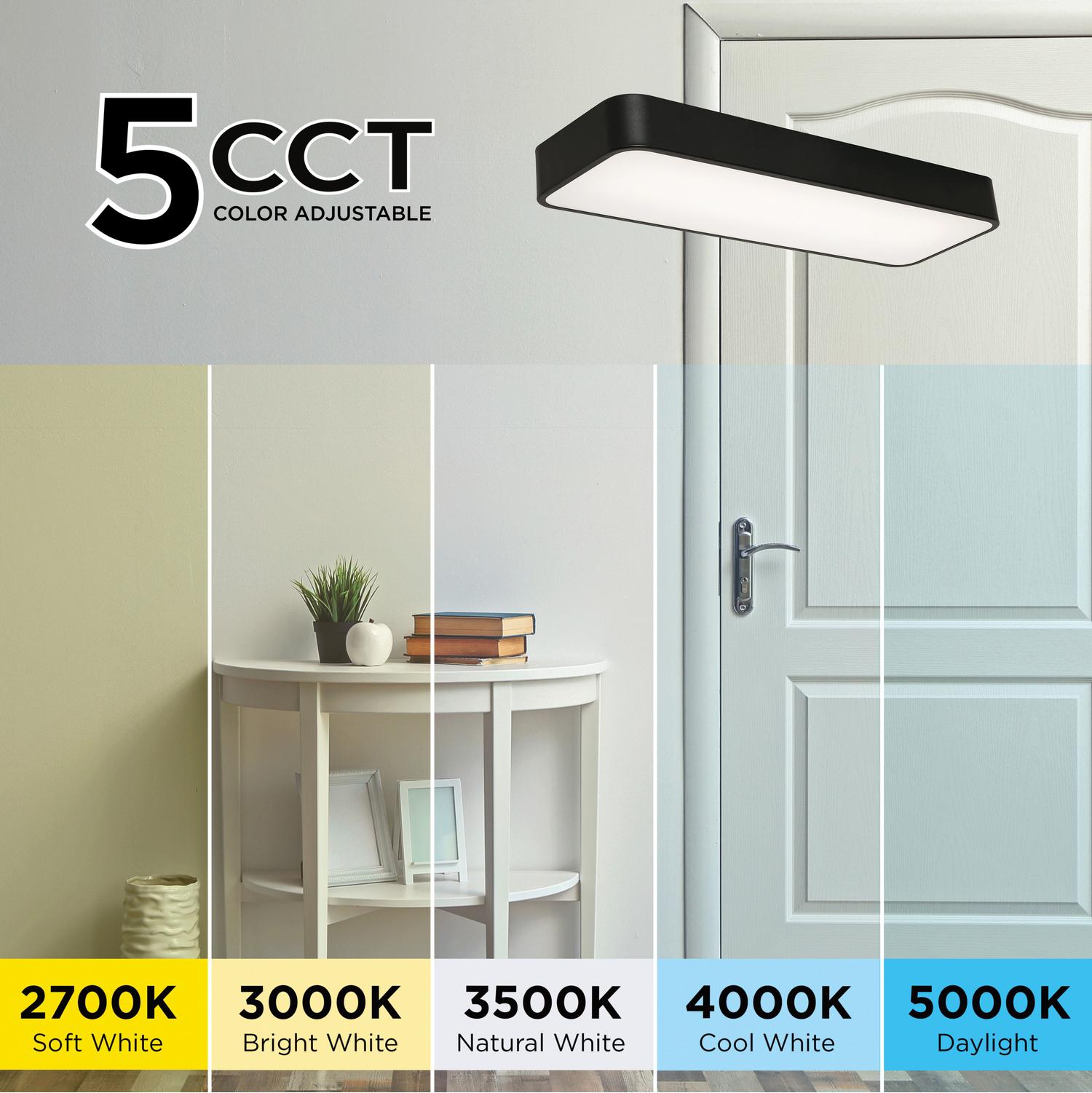

- COLOR TEMPERATURE: 2700K/3000K/3500K/4000K/5000K
- DIMMING TYPE: 0-10V (120-277V) & TRIAC/ELV (120V), Not Dimmable
- FINISH OPTIONS: Black, Satin Nickel
- SHADE: Black, Satin Nickel
- SHADE MATERIAL: Steel
- DIFFUSER: Frosted
- DIFFUSER MATERIAL: Acrylic
- WARRANTY: 5 Year Limited

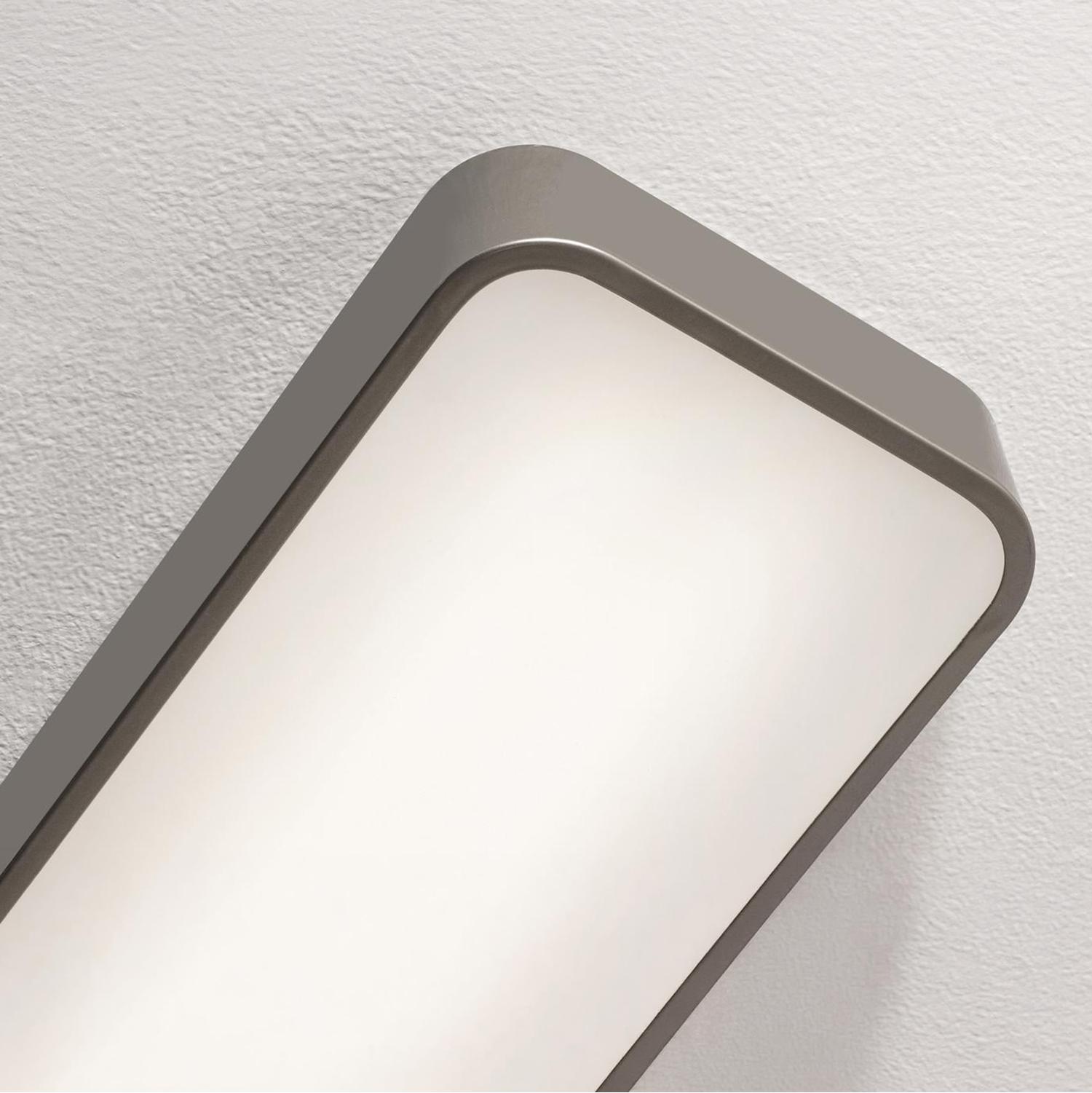

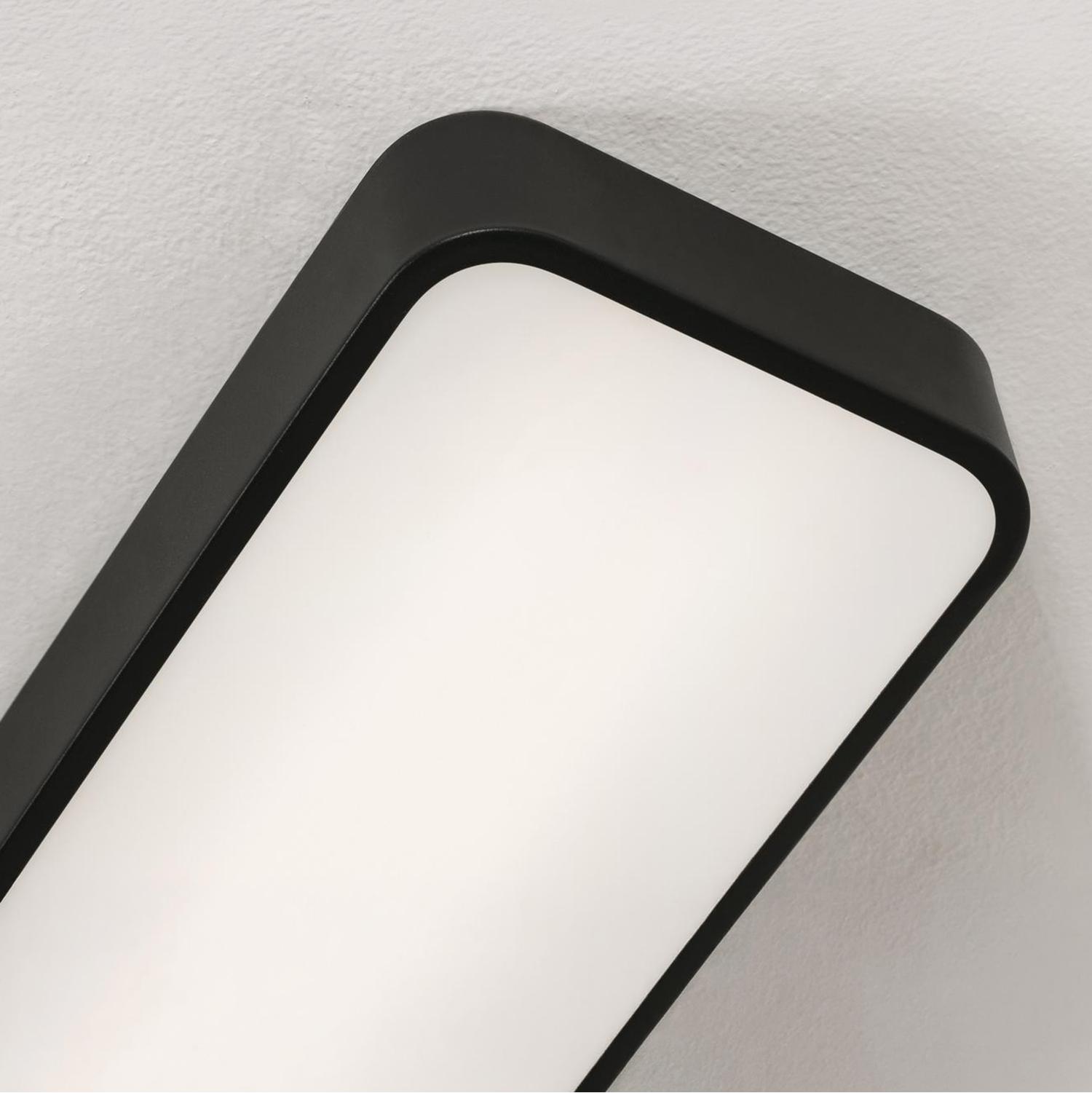

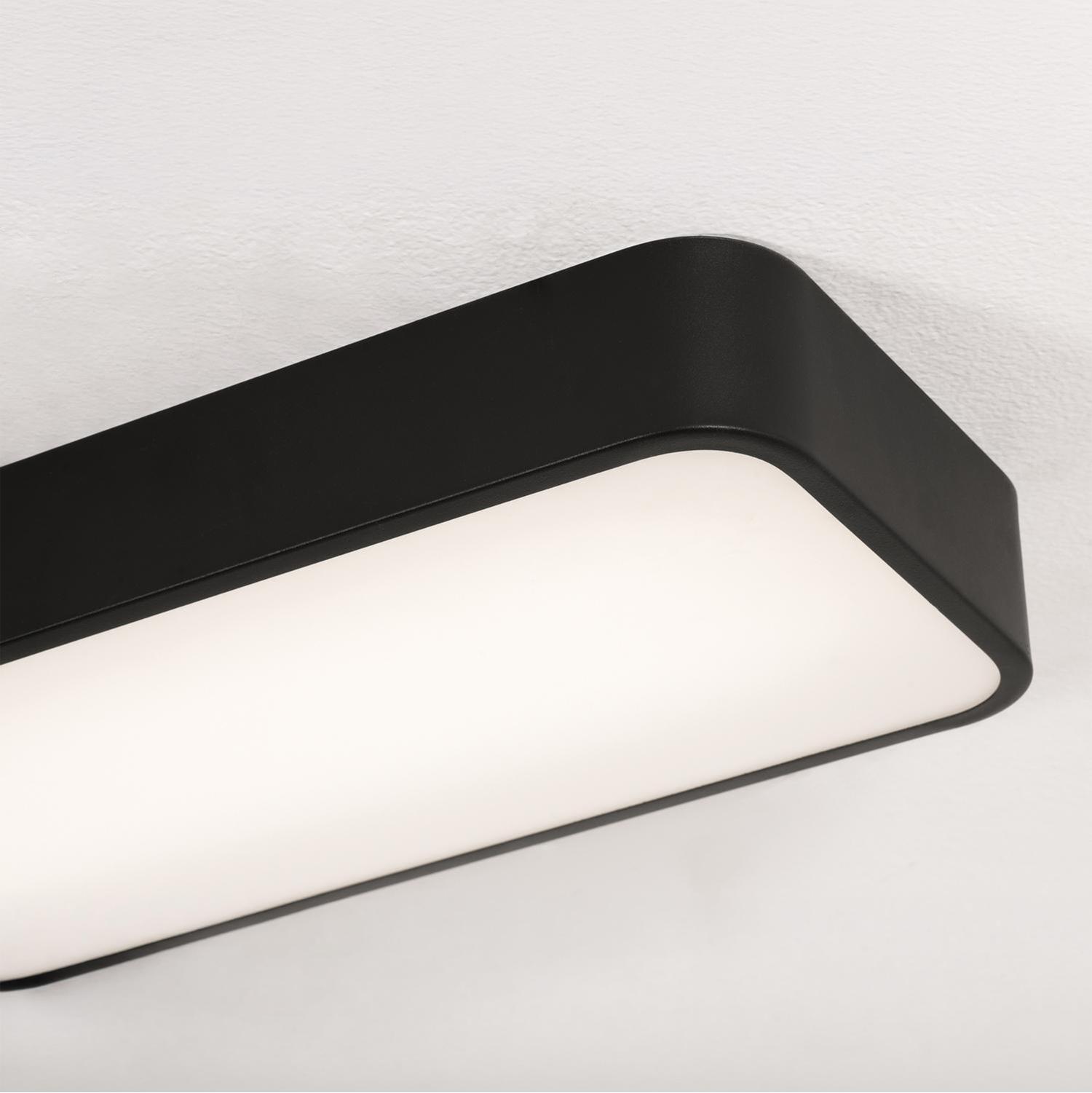

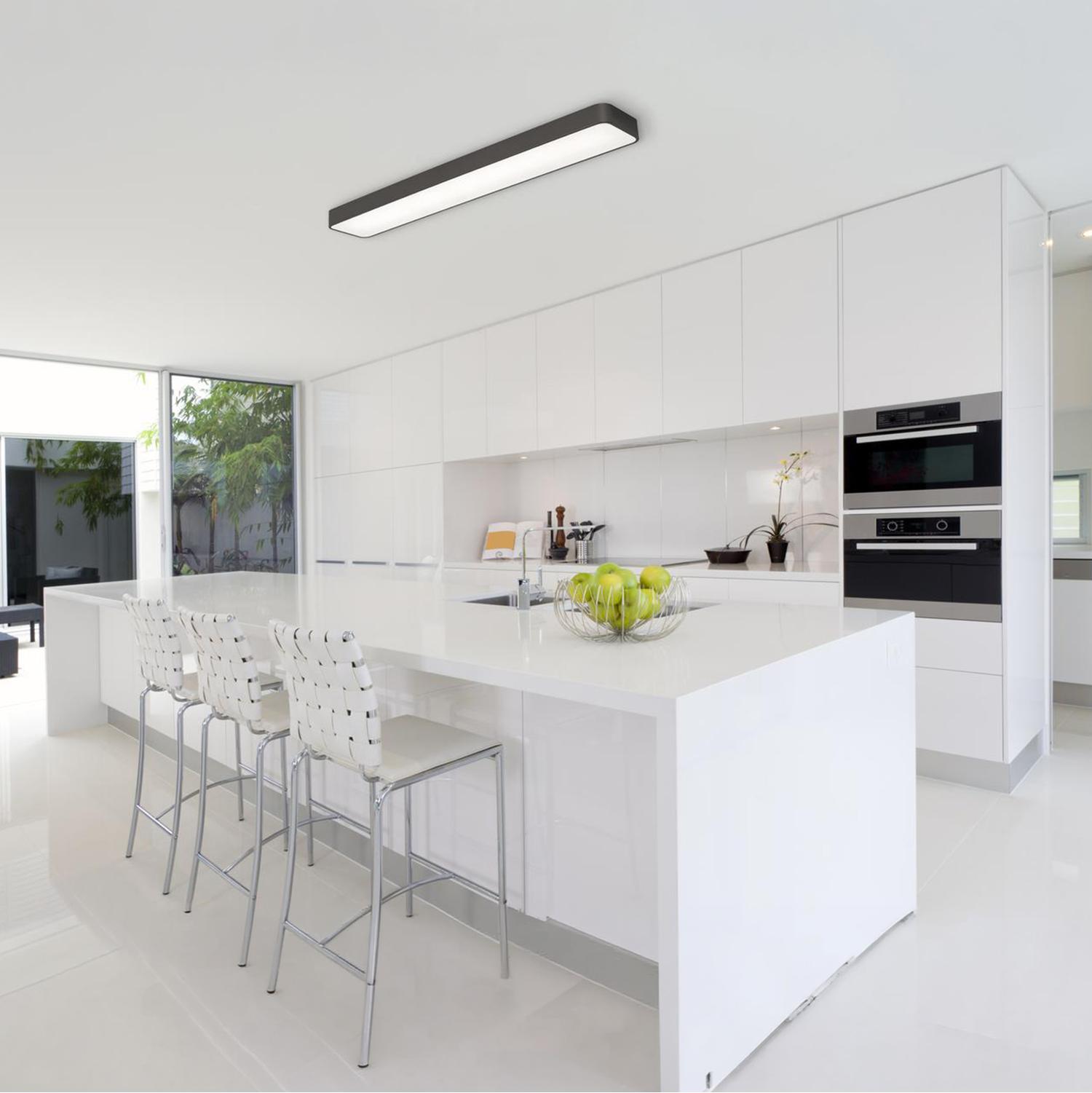

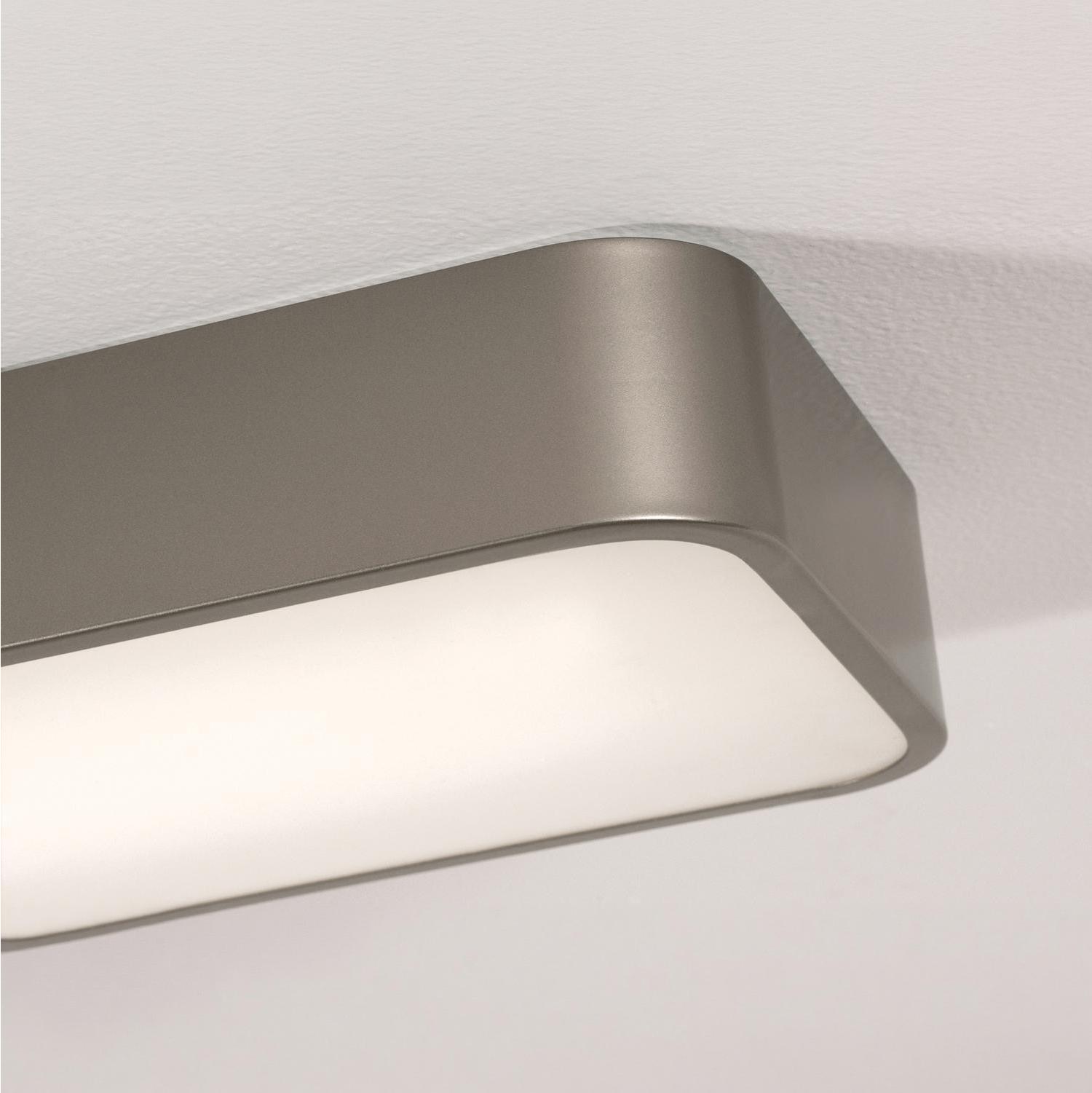

The Bailey linear ceiling series with its wide metal trim band and white acrylic diffuser, is available in two finishes and two sizes. Featuring five color adjustable CCT and options for battery back-up, motion sensor or battery back-up with motion sensor.
Item Number | Finish | Shade Color | CCT | Voltage | Certifications & Features |
---|---|---|---|---|---|
BAYL2408LAJUDBK | Black | Black | 2700K/3000K/3500K/4000K/5000K | 120-277V | Title 24, 5-in-1 CCT, 3-in-1 CCT, Dimmable, cETLus |
BAYL2408LAJUDBK-MS | Black | Black | 2700K/3000K/3500K/4000K/5000K | 120-277V | 5-in-1 CCT, Motion Sensor, cETLus |
BAYL2408LAJUDSN | Satin Nickel | Satin Nickel | 2700K/3000K/3500K/4000K/5000K | 120-277V | Title 24, 5-in-1 CCT, 3-in-1 CCT, Dimmable, cETLus |
BAYL2408LAJUDSN-MS | Satin Nickel | Satin Nickel | 2700K/3000K/3500K/4000K/5000K | 120-277V | 5-in-1 CCT, Motion Sensor, cETLus |

Title 24

5-in-1 CCT

3-in-1 CCT

Dimmable

Motion Sensor
*Some certifications and features may vary by SKU. Please refer to ordering information section for differences between item numbers.
