Bailey 30'' Flush Mount
MODEL: BAYF30

LIGHT SOURCE: Integrated LED

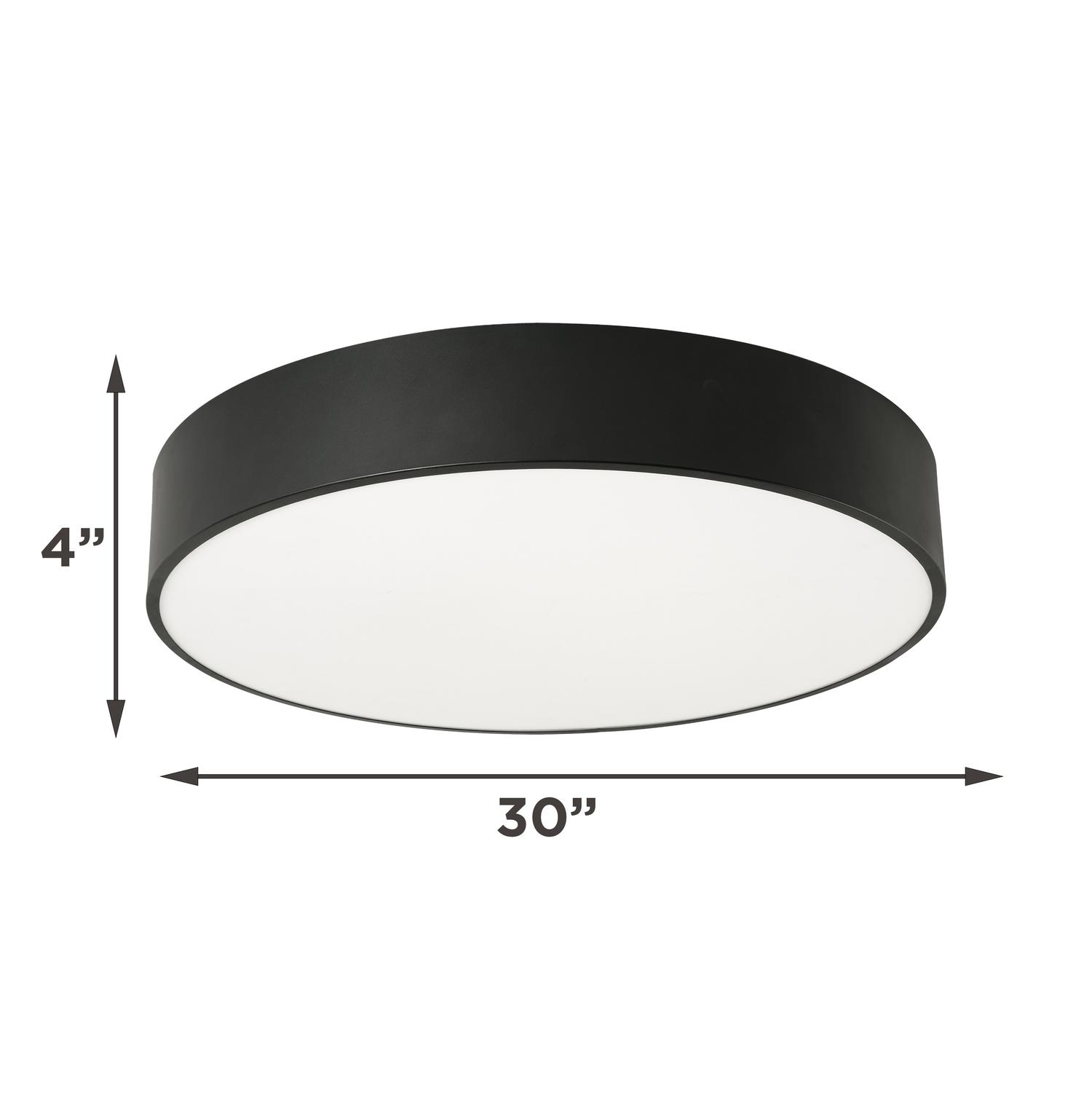

DIAMETER: 30''
HEIGHT: 4''
EXTENDS: 4''
VOLTAGE: 120-277V
WATTAGE: 45W
CRI: 90
DELIVERED LUMENS: 2700

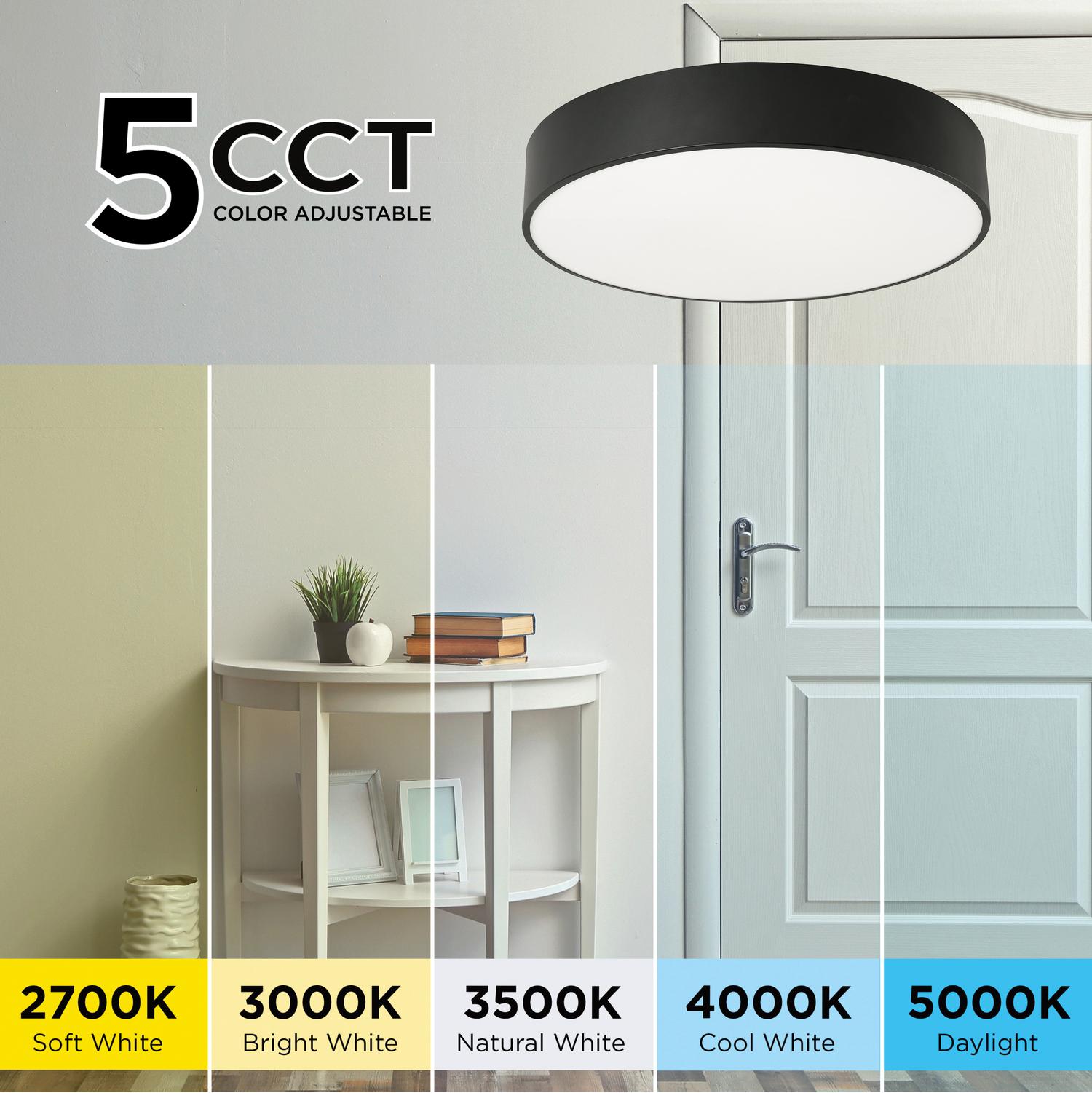

COLOR TEMPERATURE: 2700K/3000K/3500K/4000K/5000K

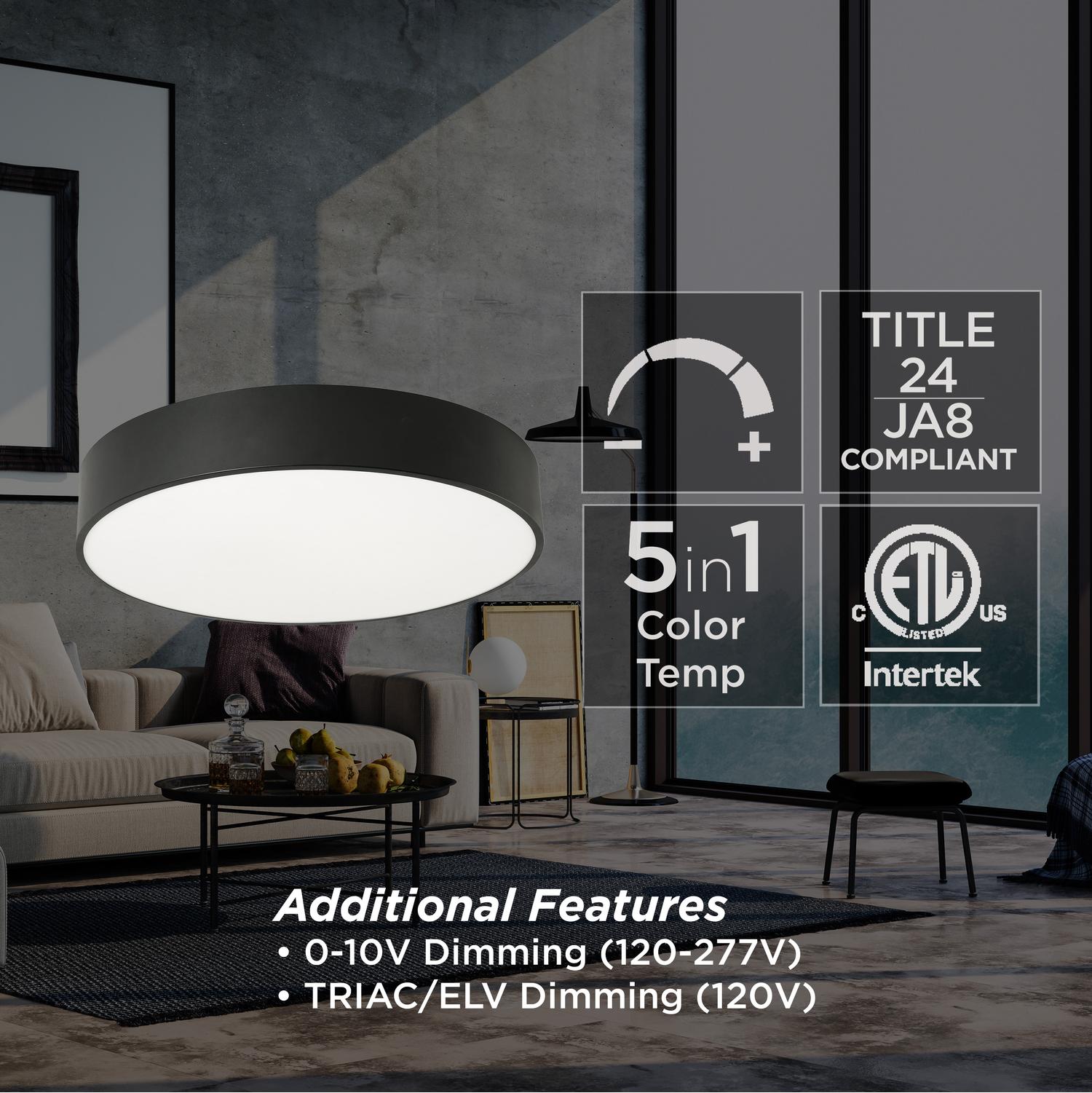

DIMMING TYPE: 0-10V (120-277V) & TRIAC/ELV (120V), Not Dimmable
FINISH OPTIONS: Black, Satin Nickel
SHADE: Black, Satin Nickel
SHADE MATERIAL: Steel
DIFFUSER: Frosted
DIFFUSER MATERIAL: Acrylic
WARRANTY: 5 Year Limited

DESCRIPTION

The Bailey large round ceiling series with its wide metal trim band and white acrylic diffuser, is available in two finishes and two sizes. Featuring five color adjustable CCT and options for battery back-up, motion sensor or battery back-up with motion sensor.

ORDERING INFORMATION

Item Number	Finish	Shade Color	CCT	Voltage	Certifications & Features
BAYF30LAJUDBK	Black	Black	2700K/3000K/3500K/4000K/5000K	120-277V	Title 24, 5-in-1 CCT, Dimmable, cETLus
BAYF30LAJUDBK-BB	Black	Black	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Battery Backup, cETLus, Title 20
BAYF30LAJUDBK-MS	Black	Black	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Motion Sensor, cETLus
BAYF30LAJUDBK-MSBB	Black	Black	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Battery Backup, Motion Sensor, cETLus, Title 20
BAYF30LAJUDSN	Satin Nickel	Satin Nickel	2700K/3000K/3500K/4000K/5000K	120-277V	Title 24, 5-in-1 CCT, Dimmable, cETLus
BAYF30LAJUDSN-BB	Satin Nickel	Satin Nickel	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Battery Backup, cETLus, Title 20
BAYF30LAJUDSN-MS	Satin Nickel	Satin Nickel	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Motion Sensor, cETLus
BAYF30LAJUDSN-MSBB	Satin Nickel	Satin Nickel	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Battery Backup, Motion Sensor, cETLus, Title 20
