Bailey 46'' LED Linear
MODEL: BAYL4608

LIGHT SOURCE: Integrated LED

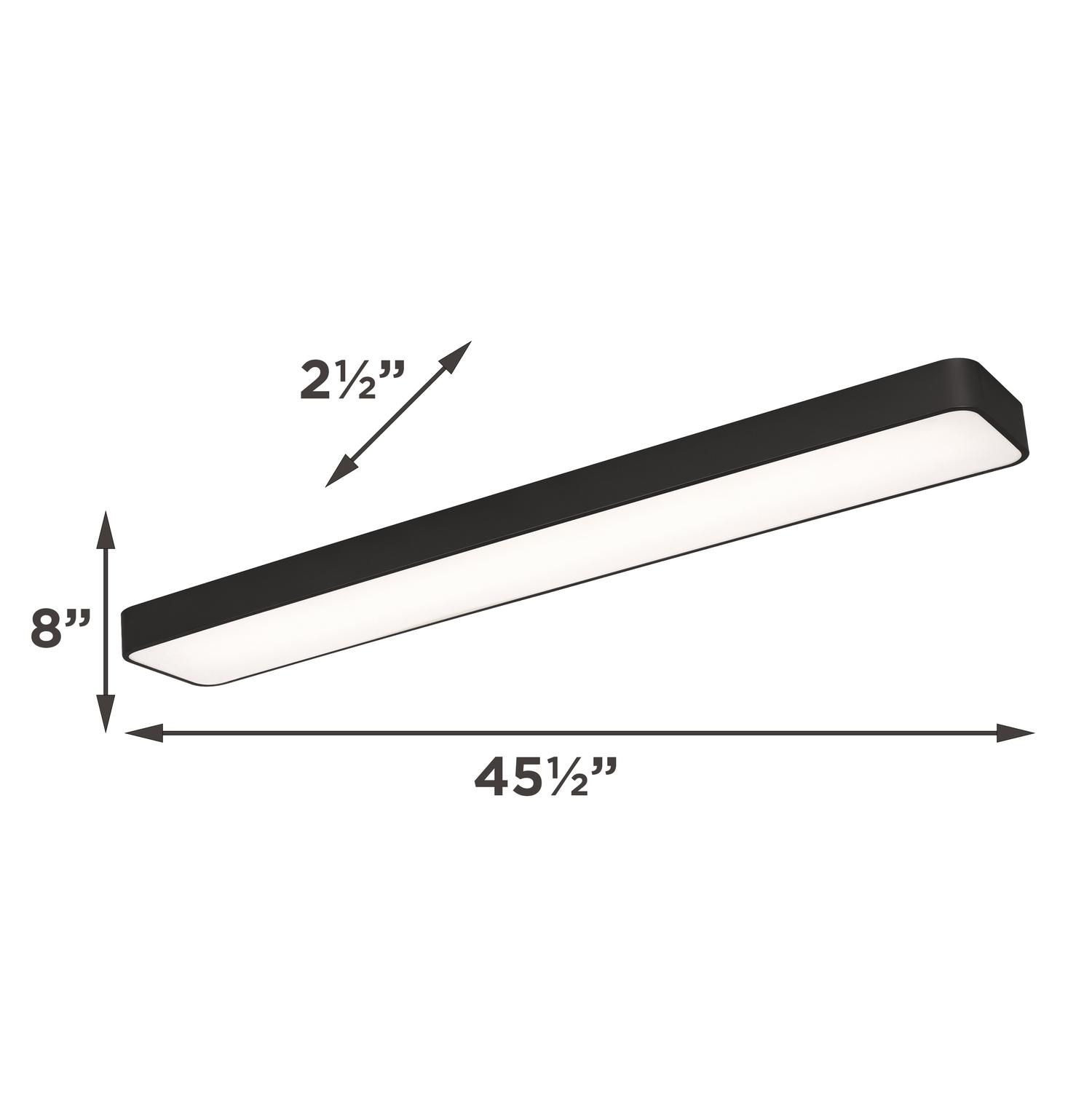

LENGTH: 45.5''
WIDTH: 8''
HEIGHT: 2.5''
EXTENDS: 2.5''
VOLTAGE: 120-277V
WATTAGE: 43W
CRI: 90
DELIVERED LUMENS: 3975

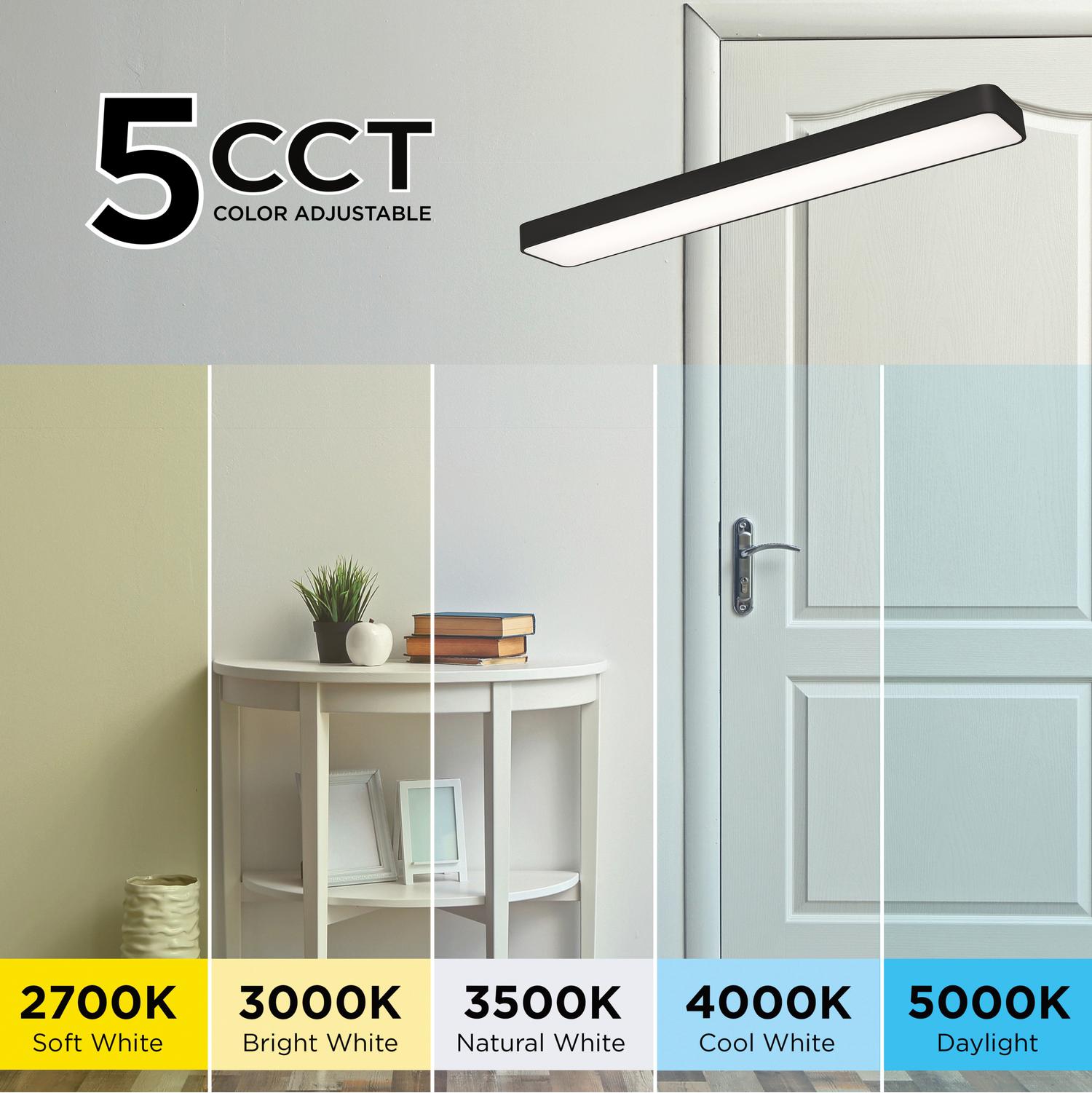

COLOR TEMPERATURE: 2700K/3000K/3500K/4000K/5000K

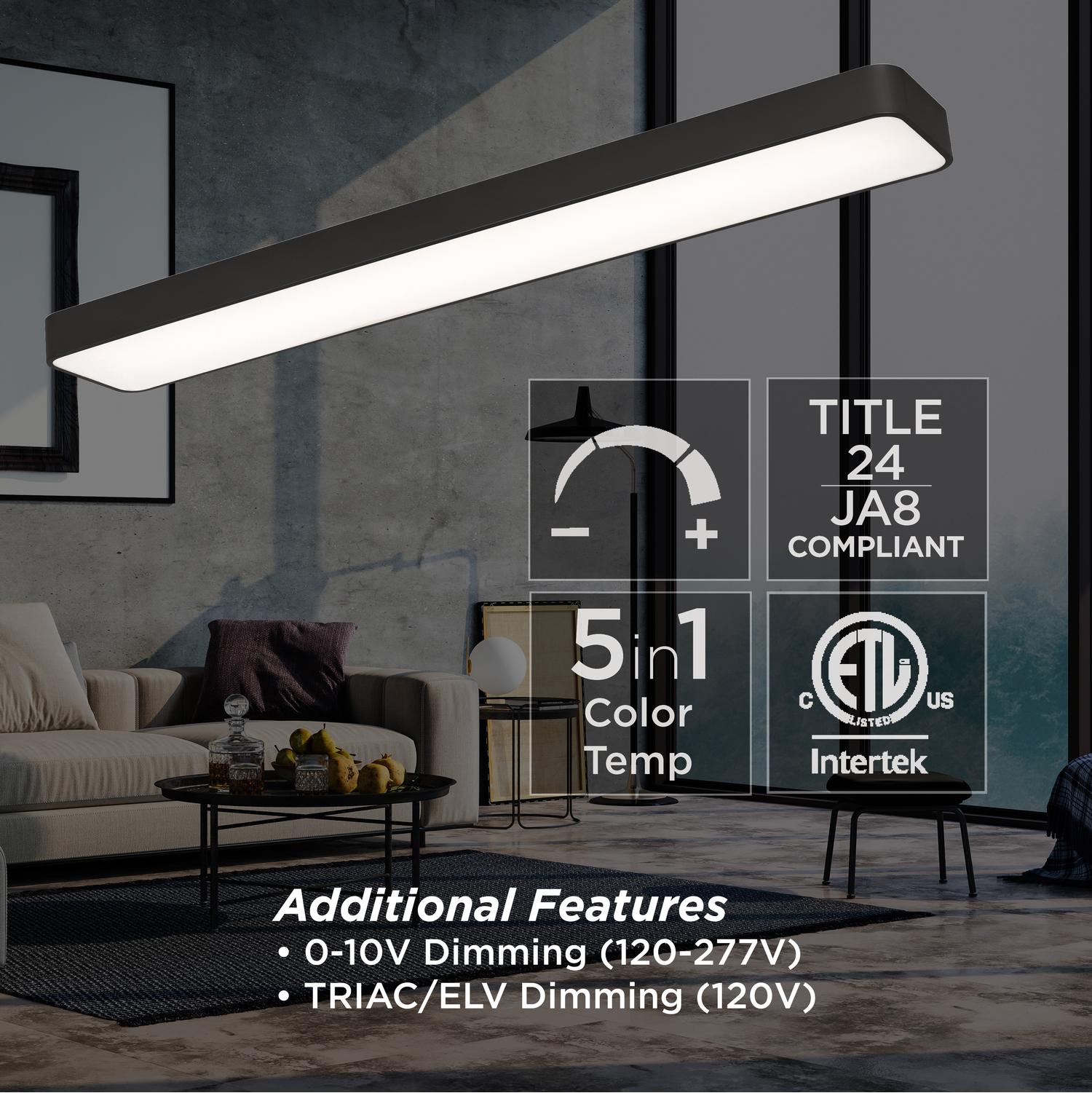

DIMMING TYPE: 0-10V (120-277V) & TRIAC/ELV (120V), Not Dimmable
FINISH OPTIONS: Black, Satin Nickel
SHADE: Black, Satin Nickel
SHADE MATERIAL: Steel
DIFFUSER: Frosted
DIFFUSER MATERIAL: Acrylic
WARRANTY: 5 Year Limited

DESCRIPTION

The Bailey linear ceiling series with its wide metal trim band and white acrylic diffuser, is available in two finishes and two sizes. Featuring five color adjustable CCT and options for battery back-up, motion sensor or battery back-up with motion sensor.

ORDERING INFORMATION

Item Number	Finish	Shade Color	CCT	Voltage	Certifications & Features
BAYL4608LAJUDBK	Black	Black	2700K/3000K/3500K/4000K/5000K	120-277V	Title 24, 5-in-1 CCT, 3-in-1 CCT, Dimmable, cETLus
BAYL4608LAJUDBK-BB	Black	Black	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Dimmable, Battery Backup, cETLus
BAYL4608LAJUDBK-MS	Black	Black	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Motion Sensor, cETLus
BAYL4608LAJUDBK-MSBB	Black	Black	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Battery Backup, Motion Sensor, cETLus
BAYL4608LAJUDSN	Satin Nickel	Satin Nickel	2700K/3000K/3500K/4000K/5000K	120-277V	Title 24, 5-in-1 CCT, 3-in-1 CCT, Dimmable, cETLus
BAYL4608LAJUDSN-BB	Satin Nickel	Satin Nickel	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Dimmable, Battery Backup, cETLus
BAYL4608LAJUDSN-MS	Satin Nickel	Satin Nickel	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Motion Sensor, cETLus
BAYL4608LAJUDSN-MSBB	Satin Nickel	Satin Nickel	2700K/3000K/3500K/4000K/5000K	120-277V	5-in-1 CCT, Battery Backup, Motion Sensor, cETLus
